Electrical System Analysis
Energy Efficiency and Power Quality Optimization in Industrial Facilities
Electrical system analysis is a professional engineering process that comprehensively evaluates the performance, load distribution, power factor, harmonic distortions, and system stability of an industrial plant's electrical grid.
In facilities with high electricity consumption, such as factories, hospitals, hotels, and data centers, failure to perform system analysis can lead to transformer overload, motor damage, energy waste, and fire risks. At AES Innovation, we maximize the energy efficiency of your facilities with our TÜRKAK-accredited electrical system analysis services.
Energy Efficiency in Industrial Facilities
Power Quality Optimization
Your Expert Partner in Electrical System Analysis Services
Step-by-Step Assessment:

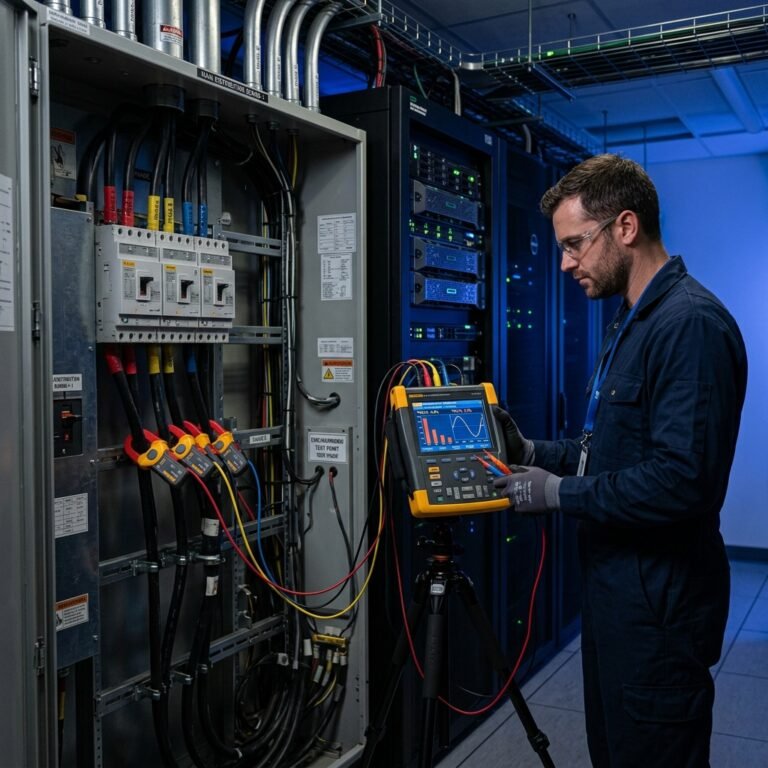

Power Quality Analysis and Harmonic Measurement
Electrical system analysis, power quality analysis, and harmonic measurement are comprehensive tests that detect distortions in the sine wave, voltage variations, and frequency mismatches in the electrical grid. Harmonics are generated by nonlinear loads (VFDs, sources, power sources, etc.) and can damage transformers, cables, and equipment.
Harmonic Measurement: Load Balance Calculation
Harmonic measurement in load balance calculations involves comparing the current and power drawn by each phase in a three-phase electrical system. A balanced system draws equal current in each phase; an unbalanced system loads one phase more than the others.
Short Circuit Analysis: System Design and Relay Adjustment
Short circuit analysis in system design is an analysis that calculates how high the system's ground current (fault current) will be if a short circuit occurs in the electrical network. If the short circuit current is too high, relays and openers can be damaged; if it is too low, the relay may not respond.
Engine Start-up Analysis
Motor Start-up Analysis is a critical electrical system analysis that examines the transient behavior of electric motors during startup. This analysis evaluates the effects of the high current drawn from the grid by the motor during startup and the voltage drops (sags) in the system.
Reporting
AES Innovation provides detailed and comprehensive reporting in its Electrical System Analysis services. The results of the analyses are presented in the form of Periodic Inspection Reports, Non-conformity Detection Reports, and Technical Evaluation Reports (Due Diligence).
WHY AES INNOVATION?
Industrial – Electrical System Analysis Services
Electrical system analysis forms the foundation of energy efficiency and system safety. Detect harmonics, load imbalances, and system problems early with professional analysis. Optimize your electrical system's performance with AES Innovation!
